제품 상세 정보:
결제 및 배송 조건:
|
| PCB 크기: | 250mm*any 길이 | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
|---|---|---|---|
| 체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
| 전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
| 사진기의 아니: | 5 | 힘: | 380AC 50HZ |
| 힘 consmption: | 6kw | 설치 형태: | 지팡이의 그룹의 그룹 |
| 성분 공간: | 0.2mm | 지류 역: | 64PCS |
| 분사구: | 64PCS | 설치 속도: | 200000CPH |
| 설치 고도: | 13mm |
1.product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:5m,50m or any length of flexible strip and roll to roll;RGB

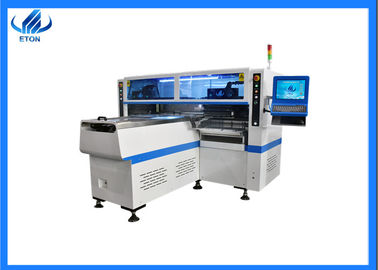

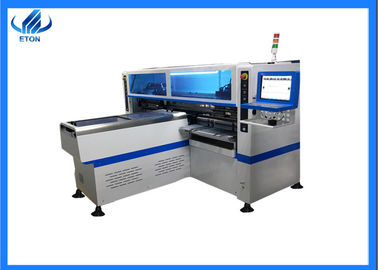

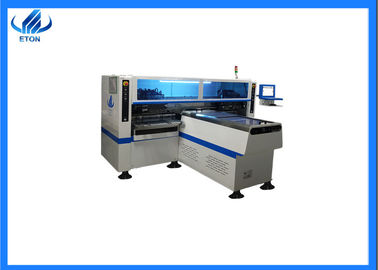

2.product Technical parameters of high speed pick and place machine
| Model number | HT-T9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
2Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
6.Company profile
7.Our clients
8.FAQ
mount cycle is the most basic parameter for marking mount speed. it refers to the time used when picking up components, after detection, sticking to the PCB and then returning the pick up component position. For each trip, complete a mount operation, that is, a mount cycle. The mounting period of Chip components is less than 0.2 s. At present, the maximum mounting period is 0.06-0.03 s;- and the mounting period of machine mounting QFP is 1~2.
selection and design of surface mounted components is a key part of the overall design of the product. the designer determines the electrical properties and functions of the components in the system structure and detailed circuit design stage. the packaging form and structure of surface assembled components should be determined in the SMT design stage according to the specific conditions of the equipment and process and the overall design requirements. solder joints installed on the surface are both mechanical and electrical connection points, and reasonable selection has a decisive effect on improving PCB design density, productivity, testability and reliability.
There is no difference in function between surface mounted components and plug-in components, the difference lies in the packaging of components. Choose the appropriate package, the main advantages are :1). effectively saving PCB area ;2). provide better electrical properties ;3). protect the interior of the components from environmental effects such as moisture ;4). provide good communication links ;5). help dissipate heat and facilitate transmission and testing.
