제품 상세 정보:
결제 및 배송 조건:
|
PCB 크기: | 80 * 110mm ~ 345 * 600mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
---|---|---|---|
체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
사진기의 아니: | 5 | 힘: | 380AC 50HZ |
힘 consmption: | 5KW | 설치 형태: | 지팡이의 그룹의 그룹 |
성분 공간: | 0.2mm | 지류 역: | 32pcs |
분사구: | 32pcs | 설치 속도: | 150000CPH |
설치 고도: | 15mm |

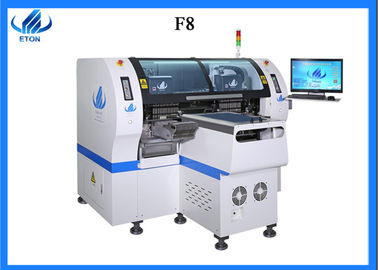

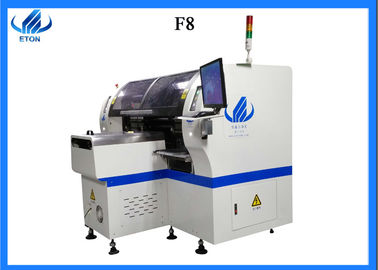

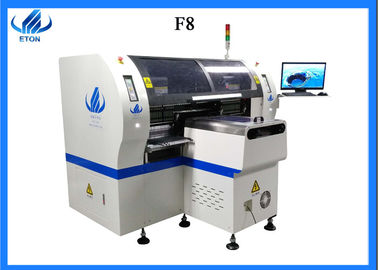

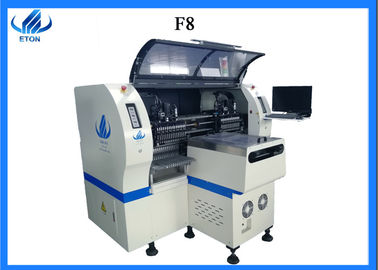

1.product details
Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.
2.product Technical parameters of high speed pick and place machine
Model number | HT-F8 |
Dimension | 1600*1900*1550mm |
PCB size | 80*110~345*600mm |
PCB thickness | 0.5~5mm |
mounting mode | group to take and group to mount |
system | windows 7 |
display | LED monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <15mm |
mounting speed | 150000CPH |
components space | 0.2mm |
NO.of feedings station | 32pcs |
NO.of nozzles | 32pcs |
power | 220AC 50HZ |
power consumption | 5KW |
operating environment | 23℃±3℃ |
conveyor transmission | MAX length:1200mm |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | Auto online drive |
position mode | optical |
air pressure | >5.0kg/c㎡ |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | servo motor |
feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
