제품 상세 정보:
결제 및 배송 조건:
|
| 길이: | 2700mm | 폭: | 2120mm |
|---|---|---|---|
| 고도: | 1550mm | 총 무게: | 1400kg |
| PCB 크기: | 80 * 350mm ~ 1200 * 350mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
| 체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
| 전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
| 사진기의 아니: | 5 | 힘: | 380AC 50HZ |
| 힘 consmption: | 6kw | 설치 형태: | 지팡이의 그룹의 그룹 |
| 성분 공간: | 0.2mm | 지류 역: | 68PCS |
| 분사구: | 68PCS | 설치 속도: | 200000CPH |
| 설치 고도: | 13mm |

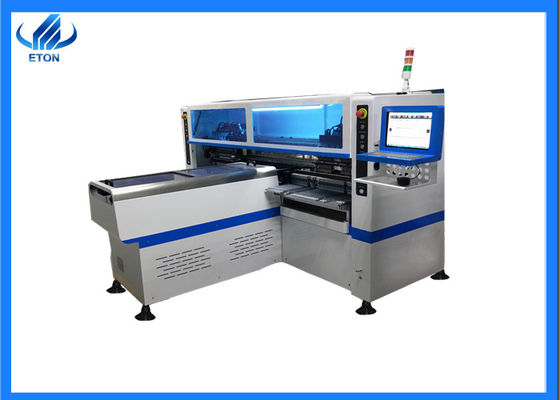

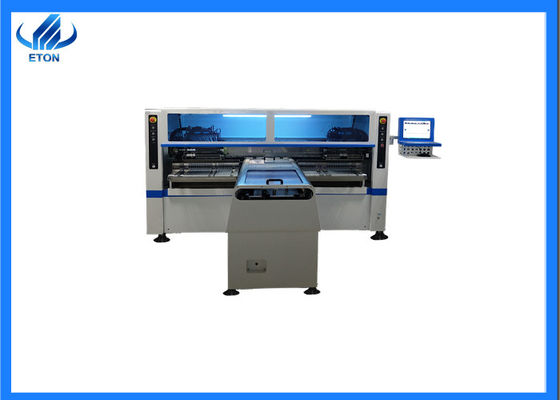

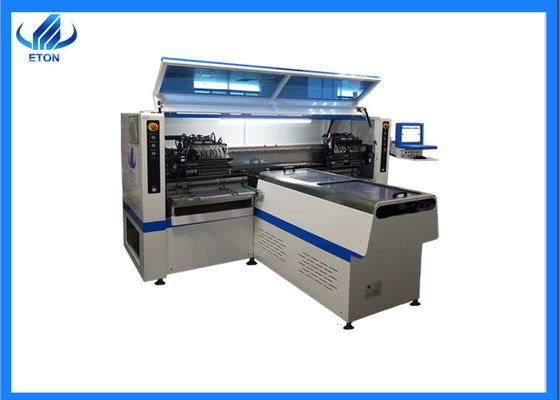

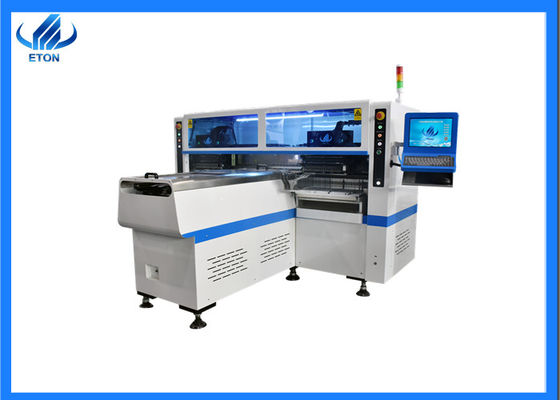

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision.
Group to take and group to mount.
2.product features of high speed pick and place machine
2.technical parameter of smt mounter machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.trade terms of smt mounter machine
| Accepted delivery terms | EXW, FOB, CIF , CFR |
| Accepted payment currency | USD, CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
5.our services
6.Company profile
Shenzhen ETON automation equipment co., LTD., founded in 2011, is a company dedicated to SMT high-speed placement machine research and development, production, sales and after-sale technical services integrated national high and new technology, the double soft enterprise. The company always adhere to the "create national brands, to build international enterprise in China" goals, is committed to providing customers with "professional, efficient, low consumption" fully automatic SMT placement machine.ETON mission: professional, excellent technology, sharing the results.
7.our clients
What are you still hesitating about? Come and contact us !
ETON---Quality placement machine equipment supplier !
Your best choice--- high speed mounter HT-f8 !
If you want to buy a mounter, please do not hesitate to choose us!
We will serve you wholeheartedly!
