제품 상세 정보:
결제 및 배송 조건:
|
| PCB 크기: | 100 * 100mm ~ 1200 * 300mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
|---|---|---|---|
| 체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
| 전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
| 사진기의 아니: | 4 | 힘: | 380AC 50HZ |
| 힘 consmption: | 8kw | 설치 형태: | 포획 센트 지팡이, 센트 포획 센트 지팡이를 분류하십시오 |
| 성분 공간: | 0.2mm | 지류 역: | 40pcs |
| 분사구: | 16pcs | 설치 속도: | 80000CPH |
| 설치 고도: | 40mm |
1.product details

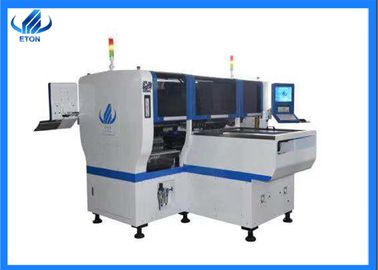

HT-E8D machine is Dual system,dual module multifunctional mounter with high capacity of 80000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc..
2.product Technical parameters of high speed pick and place machine
2.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
6.Company profile
7.Our clients
8.FAQ
SMT Patch Process
Incoming inspection => screen printing solder paste (spotting glue)=> patch => drying (curing)=> reflux welding => cleaning inspection => rework
A: incoming inspection =>PCB A surface silk-screen solder paste (dot patch glue)=>PCB> patch PCB surface silk-screen solder paste (dot patch glue). patch =>PCB> drying and reflow welding (preferably only for B surface cleaning =>PCB> detection and rework).
B: incoming inspection =>PCB A surface silk-screen solder paste (spotting glue)=>PCB> patch drying (curing)=>PCB> A surface reflow welding cleaning =>PCB> flip-flop =>PCB =>PCB=>PCB> surface spotting glue/patch curing =>PCB> surface wave soldering inspection and rework)
This process is suitable for PCB A surface reflux welding, B surface wave peak welding. this process is appropriate in PCB SMD assembled on the B surface only if SOT or below the pin.
A surface silkscreen solder paste (spotting glue)=>PCB> patch =>PCB> drying (curing)=>PCB> reflow soldering =>PCB> cleaning plug-in =>PCB> wave soldering inspection =>PCB> re-repair
B surface patch glue =>PCB> patch =>PCB> curing =>PCB> flip =>PCB =>PCB> wave soldering =>PCB> cleaning and inspection repair
Apply to SMD more than separate components
A surface plug-in (pin bending) B: incoming inspection =>PCB =>PCB> B surface spot patch glue =>PCB> patch cured flip-flop =>PCB> wave soldering inspection and repair
First insert and then paste, suitable for separating components more than SMD components
C: incoming inspection =>PCB A surface silk-screen solder paste =>PCB> patch drying =>PCB> reflux welding plug-in, pin bending =>PCB> flip-flop =>PCB of the B surface spot patch glue, patch curing =>PCB> flip-flop wave soldering cleaning detection =>PCB> rework surface mixed, B surface mount.
D: incoming inspection =>PCB B surface spot patch glue =>PCB> patch cured =>PCB> flip-flop =>PCB A surface silk-screen solder paste patch surface reflow welding plug-in =>PCB> B surface wave soldering cleaning detection =>PCB> rework surface mixing, surface mount. B surface silk-screen solder paste (spotting glue)==>PCB patch ==>PCB drying (curing)==>PCB A surface silk-screen solder paste =>PCB reflow soldering, patch drying = reflow soldering 1(local welding can be used), plug-in, wave soldering 2(if insert components are few ==>PCB, Manual welding can be used)==>PCB cleaning ==>PCB testing ==>PCB rework A surface mount, B surface mix.
A: incoming inspection, PCB A silk-screen solder paste (patch glue), patch, drying (curing), A surface reflow welding, cleaning, flip plate; PCB silk-screen solder paste (patch glue), patch, drying, reflow welding (preferably only for B surface, cleaning, testing, rework)
This process is suitable for PCB with large SMD such as PLCC on both sides.
B: incoming inspection, PCB A surface silk-screen solder paste (spot patch glue), patch, drying (curing), A surface reflow welding, cleaning, flip plate; PCB surface spot patch glue, patch, curing, B surface wave soldering, cleaning, testing, rework) this process is suitable for reflow on PCB surface.
