제품 상세 정보:
결제 및 배송 조건:
|
PCB 크기: | 80 * 330mm ~ 330 * 1200mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
---|---|---|---|
체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
사진기의 아니: | 5 | 힘: | 380AC 50HZ |
힘 consmption: | 6kw | 설치 형태: | 지팡이의 그룹의 그룹 |
성분 공간: | 0.2mm | 지류 역: | 68PCS |
분사구: | 34PCS | 설치 속도: | 150000CPH~180000CPH |
설치 고도: | 15mm |
1.product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

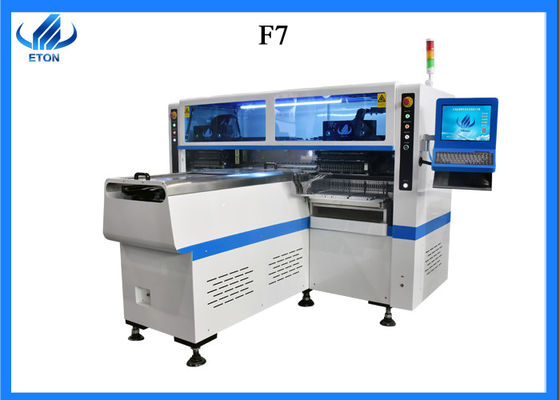

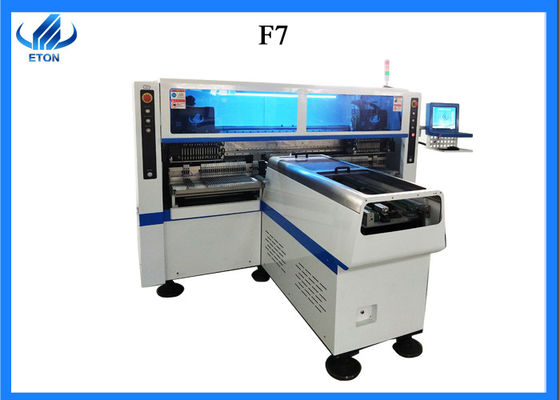

2.product Technical parameters of high speed pick and place machine
Model number | HT-F7 |
Dimension | 2700*2120*1550mm |
PCB size | 80*330~1200*330mm |
PCB thickness | 0.5~5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components space | 0.2mm |
NO.of feedings station | 68pcs |
NO.of nozzles | 34pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | MAX length:1200mm |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
air pressure | >5.0kg/c㎡ |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
2Packing & shipping of smt mounter machine
Packaging materials | Waterproof material and wooden case |
Lead time | Delivery within 30 days after receipt of payment.. |
port | Shenzhen |
Delivery time | Transshipment and partial shipment according to the contract |
6.Company profile
7.Our clients
8.FAQ
The SMT/MES industry in China is mainly concentrated in the eastern coastal areas, in which Guangdong, Fujian, Zhejiang, Shanghai, Jiangsu, Shandong, Tianjin, Beijing and Liaoning provinces and cities account for more than 80% of the total SMT/MES. China's SMT/MES industry is bound to form the Pearl River Delta, the Yangtze River Delta, the Bohai Sea around the three-legged trend. China's SMT/MES industry has such a favorable situation, mainly because the relevant departments of the Chinese government attach great importance to the development of electronic and information products manufacturing industry, and have formulated good development policies and introduced policies. Countries and regions with developed electronic information products manufacturing in the world such as the United States, Japan, South Korea, Europe and Taiwan are important factors in transferring electronic manufacturing to the mainland of China.
China's SMT industries are still concentrated in the Pearl River Delta region and the Yangtze River Delta region, which account for more than 90 percent of the total industrial scale, with the Pearl River Delta region alone accounting for 67.5 percent of the total.
From the industry's own development cycle, although China's SMT industry is still in the early stage of development, but has shown a vigorous vitality. At the same time, the SMT industry is also an important basic industry, which is of great significance to promote the structural adjustment and industrial upgrading of China's electronic and information industry manufacturing industry. Promoting the rapid and healthy development of China's SMT industry requires the joint cooperation of all links between upstream and downstream industries.
For the government, the first is to increase support for the SMT industry, especially to strengthen investment in basic research in the fields of basic materials and precision instruments. Second, as an important market supervision department, the government should strengthen the protection of intellectual property rights, actively guide the formulation of China's SMT industry standards, and actively promote and implement them.
For enterprises, one is to change the concept and fully understand the importance of production technology to the development of SMT equipment. only fully familiar with the actual production process, understand the actual production process technical parameters adjustment changes, can really design the SMT equipment in line with the actual production requirements. Second, conform to the trend of lead-free, break through the key technology and realize the serialization of key equipment products. Third, strengthen sales services and develop new models suitable for Chinese enterprises. Fourth, with the help of training certification to form a new model of equipment marketing. Fifth, pay full attention to the cultivation of self-talent and realize technological innovation and healthy development.
