제품 상세 정보:
결제 및 배송 조건:
|
| PCB 크기: | 80*350mm~350*1200mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
|---|---|---|---|
| 체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
| 전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
| 사진기의 아니: | 5 | 힘: | 380AC 50HZ |
| 힘 consmption: | 6kw | 설치 형태: | 지팡이의 그룹의 그룹 |
| 성분 공간: | 0.2mm | 지류 역: | 68PCS |
| 분사구: | 68PCS | 설치 속도: | 200000CPH |
| 설치 고도: | 13mm |

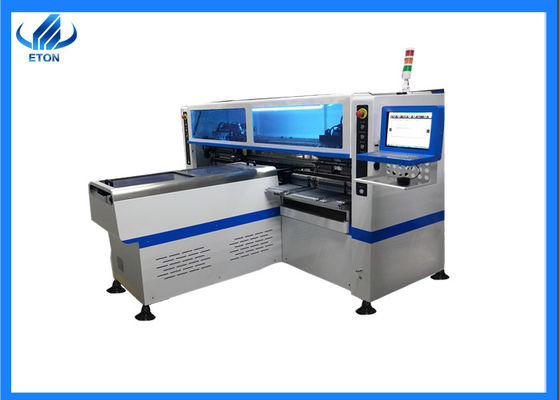

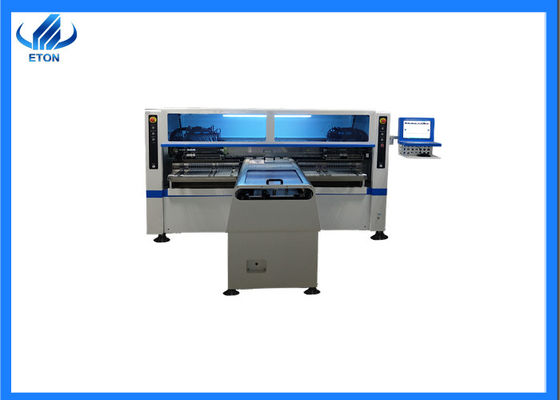

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
2Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
6.Company profile
7.Our clients
8.FAQ
SMT the speed of the placement machine is generally divided into theoretical speed and actual speed. The theoretical speed refers to the patch speed of the placement machine in the optimal state, including the speed under the optimal arrangement of the Fida installation sequence, the patch sequence, the patch head selection, etc. The actual speed is that in the actual production situation, the real speed is generally lower than the theoretical speed because it is impossible to reach the optimal state in the specific situation. To improve the speed of SMT placement machine is to improve the SMT placement machine's actual patch speed, and to improve the SMT placement machine's actual patch speed should be considered from several aspects.
SMT theoretical speed is the amount obtained by absorbing 0402 component equipment on a dedicated test board at full speed to identify the mount. It usually takes only a few minutes to calculate a theoretical value of one hour.
The placement machine is classified according to the SMT patch speed, and the placement machine can be divided into low speed, medium speed, high speed and massive patch system (the patch rate is more than 20,000 per h).
(1) Low speed mounting machine. A low-speed placement machine has a patch rate of less than 3000 h.. The loading cycle time is generally less than 1 s/ point, which is generally suitable for product trial production, new product development, small batch production and special SMC/SMD.
(2) Medium speed mounting machine. The patch rate of medium speed placement machine is generally 3000~8000 pieces / h, patch cycle time is generally at 1~0.5 points. it is suitable for situations with wide SMC/SMD range, rich accessories, perfect function, high patch accuracy and certain production efficiency. In addition, the performance-price ratio of equipment is moderate, is the priority of small and medium batch production equipment.
(3) High speed mounting machine. The patch rate of high speed placement machine is more than 8000 per h, and the patch cycle time is less than 0.4 s/ points. High production efficiency, suitable for mass production, especially for the use of a large number of chip capacitors, chip resistors and small SMD occasions, and a small number for the production of special SMD.
