PCB 크기: | 250mm*any 길이 | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
---|---|---|---|
체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
사진기의 아니: | 5 | 힘: | 380AC 50HZ |
힘 consmption: | 6kw | 설치 형태: | 지팡이의 그룹의 그룹 |
성분 공간: | 0.2mm | 지류 역: | 64PCS |
분사구: | 64PCS | 설치 속도: | 200000CPH |
설치 고도: | 13mm |
1.product details

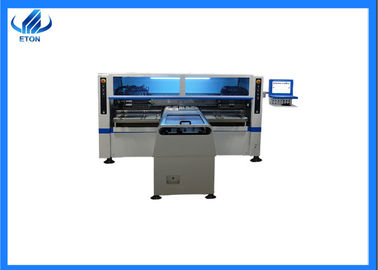

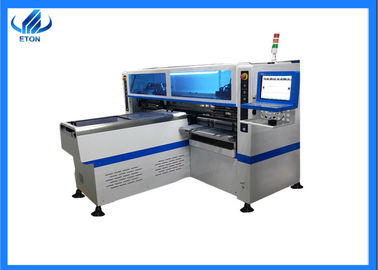

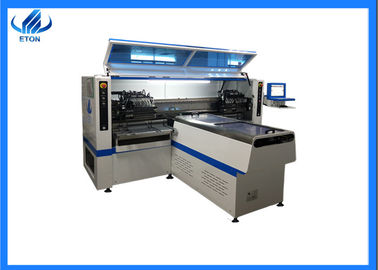

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
2.product Technical parameters of high speed pick and place machine
Model number | HT-X9 |
Dimension | 2450*2100*1550mm |
PCB size | 250mm*any length |
PCB thickness | 0.5~1.5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components space | 0.2mm |
NO.of feedings station | 64pcs |
NO.of nozzles | 64pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | any length |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
Air Force | 0.5mpa |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
3.Packing & shipping of smt mounter machine
Packaging materials | Waterproof material and wooden case |
Lead time | Delivery within 30 days after receipt of payment.. |
port | Shenzhen |
Delivery time | Transshipment and partial shipment according to the contract |
4.Company profile
5.Our clients
6.FAQ
Convex lens: middle thick, edge thin, have double convex, flat convex, concave convex three kinds;
Concave lens: middle thin, edge thick, there are double concave, flat concave, convex concave three kinds.
