제품 상세 정보:
결제 및 배송 조건:
|
| PCB 크기: | 50 * 50mm ~ 350 * 400mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
|---|---|---|---|
| 체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
| 전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
| 사진기의 아니: | 2 | 힘: | 380AC 50HZ |
| 힘 consmption: | 6kw | 설치 형태: | 포획 센트 지팡이, 센트 포획 센트 지팡이를 분류하십시오 |
| 성분 공간: | 0.2mm | 지류 역: | 32pcs |
| 분사구: | 10pcs | 설치 속도: | 30000CPH~35000CPH |
| 설치 고도: | 40mm |
1.product details

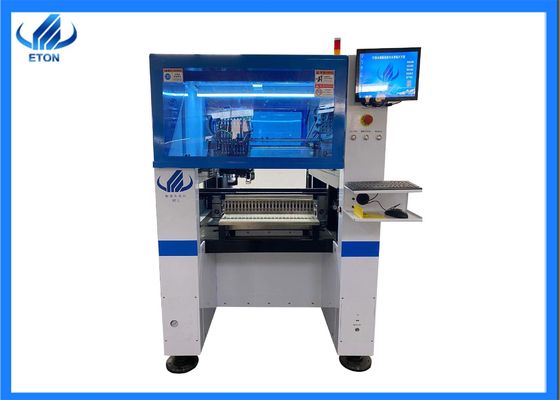

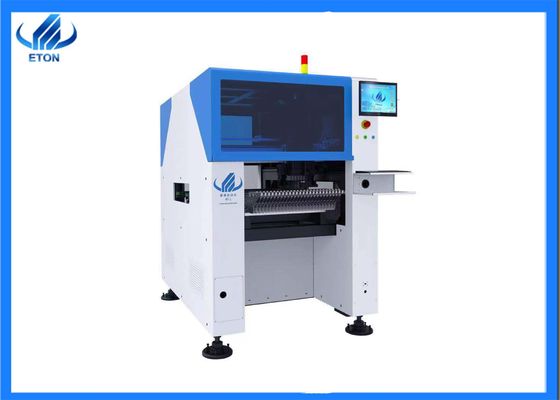

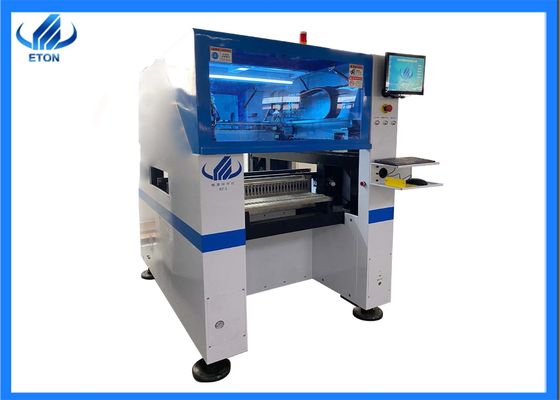

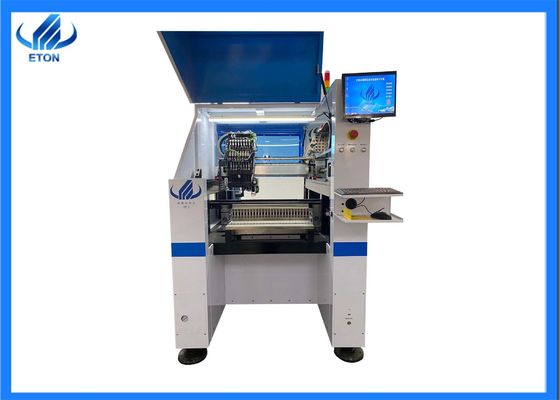

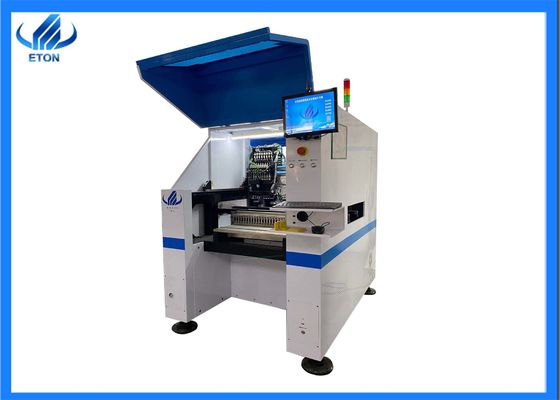

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
2.product Technical parameters of high speed pick and place machine
| Place of origin | Guangdong,China |
| Model number | RT-1 |
| dimension | 1104*1584*1655 |
| PCB size | 50*50～400*350 |
| PCB thickness | 0.1～6mm |
| Mounting speed | 30000～35000CPH |
| Mounting mode | Group picking and separate placing, separate picking and separate placing. |
| Mounting precision | ±0.02cm |
| Feeder stations | 32pcs |
| nozzles | 10pcs |
| Mounting height | 40mm |
| No.of camera | 2 sets of imported camera |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
