제품 상세 정보:
결제 및 배송 조건:
|
PCB 크기: | 100*100mm~500*300mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
---|---|---|---|
체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
사진기의 아니: | 4 | 힘: | 380AC 50HZ |
힘 consmption: | 8kw | 설치 형태: | 거치하기 위하여 가지고 가고 분류할 것이다 그룹 |
성분 공간: | 0.2mm | 지류 역: | 60pcs |
분사구: | 16pcs | 설치 속도: | 80000CPH |
설치 고도: | 40mm |
1.product details

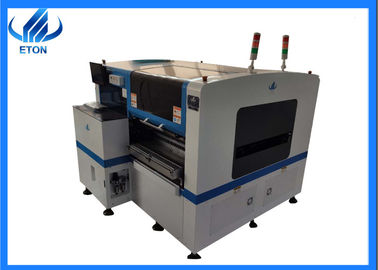

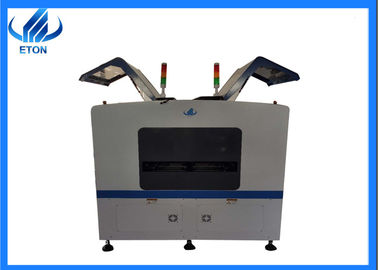

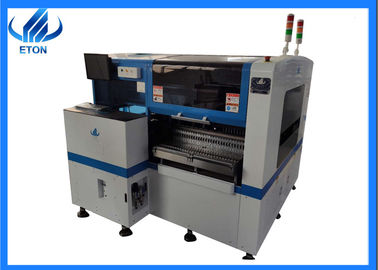

HT-E5D machine is Dual system,dual module multifunctional mounter with high capacity of 80000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
2.product Technical parameters of high speed pick and place machine
Place of origin | Guangdong,China |
Model number | HT-E5D |
dimension | 1650*2000*1550 |
PCB size | 100*100~500*300 |
PCB thickness | 0.5~3mm |
components | LED,capacitors,resistors,shaped components,etc. |
Mounting speed | 80000CPH |
Mounting mode | Group picking and separate placing, separate picking and separate placing. |
Mounting precision | ±0.02cm |
Feeder stations | 60pcs |
nozzles | 16pcs |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
5.Company profile
6.Our Our certificates and certifications
7.our services
8. trade show
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
The vision system of the machine consists of two parts: visual hardware and visual software. The camera is the sensing part of the visual system image, and the solid state camera is generally used. A solid-state camera is mainly composed of an integrated circuit, which makes a CCD array of fine and precise photosensitive components. The electrical signal output by each photosensitive detection component is proportional to the intensity of the light emitted at the corresponding position on the observed target, which is recorded as the gray value of this pixel. the pixel coordinates determine the position of the point in the image. Analog electrical signals generated by each pixel are converted to a certain value between 0~255 through the mode/number conversion and transmitted to the computer. a large amount of information obtained by the camera is microprocessed, and the processing results are displayed by the display. The camera is connected to the microprocessor, microprocessor and actuator and monitor by a communication cable.
The main factors affecting the accuracy of the visual system are the number of pixels of the camera and the optical magnification. The more pixels of the camera, the higher the accuracy; the greater the optical magnification of the image, the higher the accuracy. because the larger the optical magnification of the image, the more image elements corresponding to a given area, and thus the higher the accuracy. However, when the magnification, it is more difficult to find the corresponding graphics, so the precision reduces the mount rate of the mount system, so we should determine the appropriate camera optical magnification according to the actual needs.
