제품 상세 정보:
결제 및 배송 조건:
|
| PCB 크기: | 100*100mm~500*350mm | pcb 죔쇠; ing: | 압축 공기를 넣은 조정가능한 압력 |
|---|---|---|---|
| 체계: | windows7 | 소프트웨어: | 자주적으로 연구 및 개발 |
| 전시: | 터치스크린 감시자 | 입력 장치: | 키보드, 쥐 |
| 사진기의 아니: | 2 | 힘: | 380AC 50HZ |
| 힘 consmption: | 5KW | 설치 형태: | 포획 센트 지팡이, 센트 포획 센트 지팡이를 분류하십시오. |
| 성분 공간: | 0.2mm | 지류 역: | 30pcs |
| 분사구: | 8PCS | 설치 속도: | 40000CPH |
| 설치 고도: | 40mm | ||
| 강조하다: | Bulb Light Smt Mounter Machine,LED Display Smt Mounter Machine |
||
product details

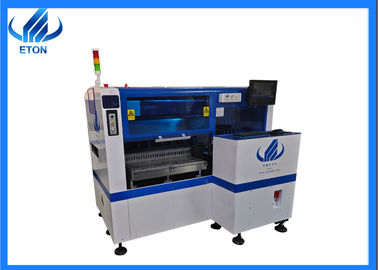

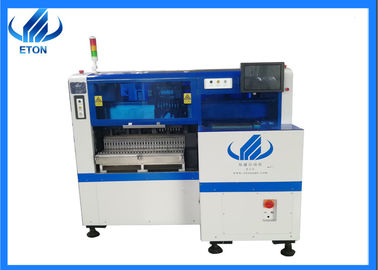

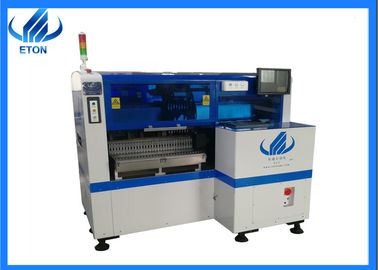

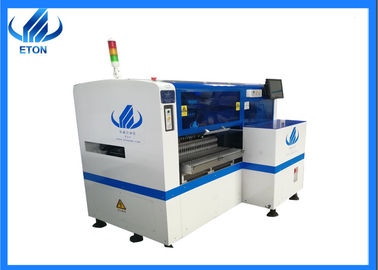

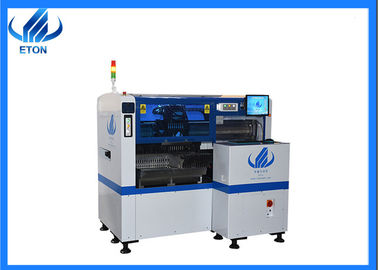

HT-E5s machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
product Technical parameters of high speed pick and place machine
| Model number | HT-E5S |
| Dimension | 1650*12000*1570mm |
| PCB size | 5000*350～100*100mm |
| PCB thickness | 0.5～3mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | Group take cent stick, cent take cent stick |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 2 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <40mm |
| mounting speed | 40000CPH |
| components space | 0.2mm |
| NO.of feedings station | 30pcs |
| NO.of nozzles | 8pcs |
| power | 380AC 50HZ |
| power consumption | 4KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:500mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
Packing & delivery of smt mounter machine
Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:
| Quantity (units) | Est. Time (days) |
| １－２ | >２ |
| 3０ | To be negotiated |
Production line example of [pick and place machine
Company profile
our clients
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Higher precision,
faster speed,
independent research and development,
in China supplier ETON!
Industry related knowledge
Bubble related knowledge
Since incandescent and electronic energy-saving lamps still occupy a very high proportion of people's daily use, in order to reduce waste, LED lighting manufacturers must develop LED lighting products that conform to existing interfaces and people's usage habits, so that people can use a new generation of LED lighting products without the need to replace the base and line of the original traditional lamps. As a result LED bulb lights came into being. LED bulb lamp adopts the existing interface mode, that is, screw port, socket mode (E26E27E14B22, etc.), and even imitates the shape of incandescent bulb to conform to people's usage habits. Based on the principle of LED unidirectional light-emitting, the light distribution curve of LED bulb lamp is similar to that of incandescent lamp. Based on the LED luminous characteristics, the structure of LED bulb lamp is relatively complex to incandescent lamp, which is basically divided into light source, drive circuit, heat dissipation device. Hence LED lighting products are still high-tech lighting products with high technology content.
