| Application: | LED lights, electrical products, household appliance | Power supply: | 380AC 50HZ |
|---|---|---|---|
| Warranty: | 1 year | Product name: | Automatic SMT pick and place machine |
| Weight: | 1700KG | Mounting speed: | 45000 CPH |
| Feeders: | 28PCS | Pcb thickness: | 0.5-5 mm |
| Dimension: | 2550*1650*1550mm | ||
| 하이 라이트: | One Module SMT Placement Machine,Stable Performance SMT Placement Machine,45000 CPH smt placement equipment |
||

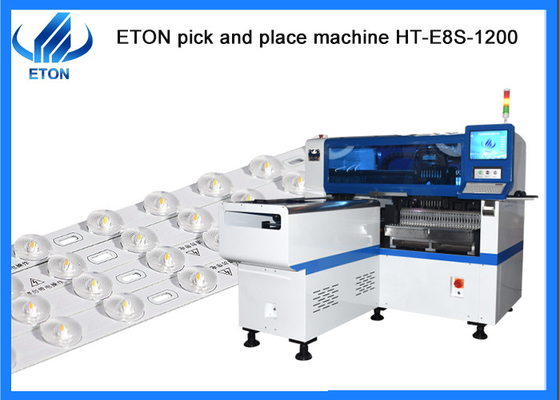

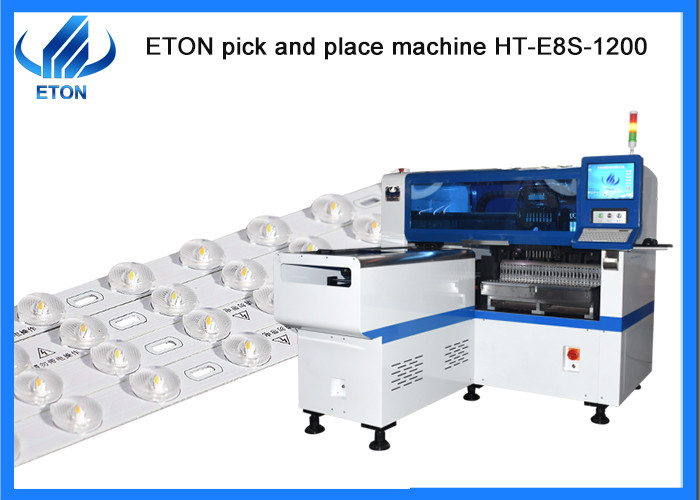

One module 45000 CPH stable placement performance placement machine
Features
Exclusive Patented Technology:
Machine parameter
| Model | HT-E8S-1200 |
| Dimension | 2550mm*1650mm*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| No. of feeders station | 28PCS single module |
| No. of head | 12 PCS single module |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Market
In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.
In Turkey: ACK, KENDAL, KING LED are one of our large customers.
In Vietnam: RangDong, TAMKIM are one of our large customers.
In Egypt: UNISTAR is one of our large customers.
In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers
Related machine

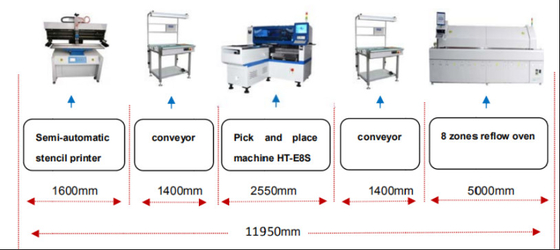

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
