제품 상세 정보:
결제 및 배송 조건:
|
| 보증: | 1년 | 이름: | SMT 자동 픽 앤드 플레이스 기계 |
|---|---|---|---|
| 적용: | LED 스트립, 튜브, 패널 빛 | 전원 공급: | 380AC 50HZ 6kw |
| 조건: | 새로운 | 무게: | 1700 킬로그램 |
| 장착 속도: | 200000-250000 CPH | 차원: | 2700*2300*1550mm |
| 공급 장치: | 68 PC | PCB 두께: | 0.5-5 밀리미터 |
| 하이 라이트: | LED Tube SMT Placement Equipment,High Production Mounter Machine In SMT,LED Tube Mounter Machine In SMT |
||

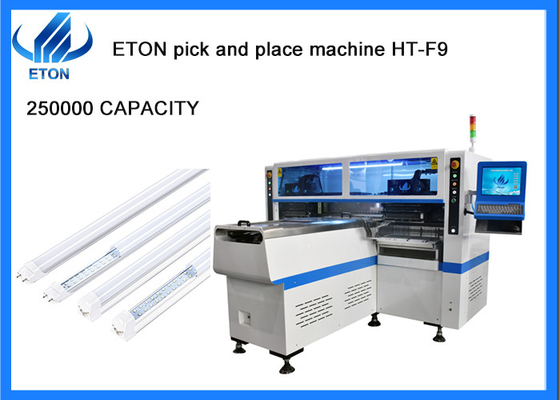

High quality production LED tube light SMT placement mounter
Production description
Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with 250000 CPH capacity, available for board with any proportion of LED chip and resistor.
Owing an exclusive technology of group picking and group placing, PCB size is 1200*330 can mount LED 3014/3020/3528/5050 or resistor, capacitor and bridge rectifiers, etc.
Features
Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to take and group to mount.
IPC9850 capacity: 200000-250000 CPH
Machine parameter
|
Model |
HT-F9 |
|
PCB length width |
Max: 1200*330mm Min: 100*100mm |
|
PCB thickness |
0.5-5mm |
|
PCB clamping |
Adjustable pressure pneumatic |
|
Mounting mode |
Group picking and group placing |
|
Mounting precision |
±0.02mm |
|
Mounting speed |
200000-250000 CPH |
|
No. of feeders station |
68 PCS |
|
No. of head |
68PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
