| Warranty: | 1 Year | Applicable components: | 0805,0603,1206 |
|---|---|---|---|
| Name: | SMT Pick and Place Machine | Application: | SMT Production Line,for SMT machine |
| Condition: | new,100% Original,Brand-new | Mounting speed: | 180000 CPH |
| Type: | Automatic | Usage: | SMT Mounting Machine,LED |
| 하이 라이트: | SMT chip mounting machine,LED Panel SMT chip mounting machine,LED Panel Making Placement Machine |
||

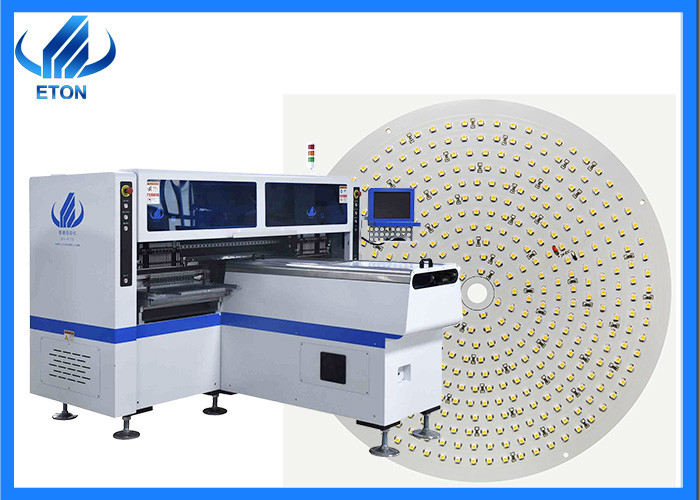

High Speed Chip Shooter LED SMT Machine SMD LED chip mounter
What is Pick and Place Machine?
Automatic Positioning Machine is used to realize high speed, high precision and automatic positioning of components. It is the most important and complex equipment in the whole SMT production. The machine position is really an industrial precision robot. Through the function of absorption-transfer-position-position, without damaging components and printed circuit boards, it realizes fast and accurate mounting of SMC/SMD components to the processes Specify the Pad position on the PCB Board.
l Apply to the 0.6m, 0.9m,1.2m(0~1.2m)LED hard light Board and LED Strip (Rope Light) etc.
l Apply to LED Strip flexible and hard tube board, panel etc.
Technical Parameter
| HT-F7S | Specifications |
| Length Width Height | 2700*2450*1530mm |
| PCB Length Width |
MAX:1200*330mm MIN:50*50mm
|
| PCB Thickness | 0.5 ~ 5mm |
| Mount Mode | Group to have and group to bond |
| Not available. of Camera | 5 sets of imported cameras |
| System Vision | Vision link, Mark correction |
| Precise Mounting | ± 0.02mm |
| Installation Height | 15±2Mm |
| Mounting Speed | 150000 ~ 170000CPH |
| Element | LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
| Speed Components | 0.2mm |
| Eat Station | 68PCS |
| Not available. of the Nozzles | 34PCS |
| Electrical control | Independently researched and developed by ETON |
| Modular Motion Control Card 1 Set | Independently researched and developed by ETON |
| XY Shaft Drive Way | High-grade magnetic linear motor and servo motor |
| How to eat | Power feeder with dual motors |
♦ Certificate Of Honor:
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Service
1. We provide whole line solution for our clients needs.
2. We have some official site in India as Mumbai, Dammam and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
3. As long as you buy our machine we will arrange our engineers to install debug and training for you for free, until you learned how to operate the machine.
4. Chinese engineer can provide online services especially in the period of the COVID-19 epidemic.
5. If necessary, Chinese engineers will come to your factory for free install and training you how to operate the machine.
6. Free up-date of the machine’s software.
7. We will arrange our engineers to visit your factory for check or test the status of the machine.
8. If you have any problem you can contact us with any time we have 24 hours service for solving your problem on time.
FAQ
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
