제품 상세 정보:
결제 및 배송 조건:
|
| Warranty: | 1 Year | Applicable components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick and Place Machine | Condition: | new,100% Original,Brand-new |
| Product name: | Place Machine\ LED Mounter\LED Assembly Machine | Mounting speed: | 90000 CPH |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Feeders: | 48 |
| Tape width: | 24mm,8mm,12mm | ||
| 하이 라이트: | DOB Production SMT Mounting Machine,dual system LED DOB Making Machine,High Speed LED DOB Making Machine |
||

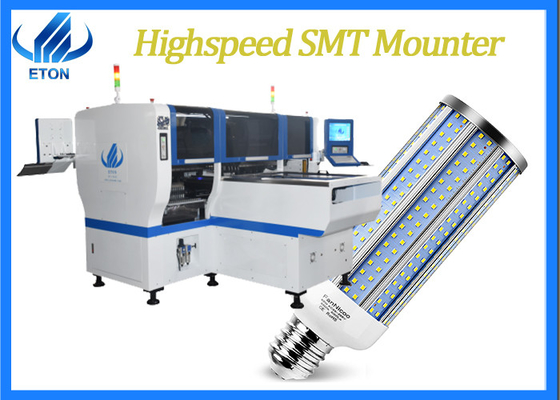

ETON SMT placemant machine With 90000CPH for led DOB making chip mounter
Machine introduction
HT-E8D is a dual system,dual module multifunctional mounter to produce two different products at the same time,it can mount the component range from 0402 to 15mm.and e8d has two guide rail, and each rail can produce a product,and the one side is wrong,the other side will continue.E8D-1200 is suitable for the largest PCB board size of 1200 * 300mm,mini size 100*100mm.with a production capacity of 90000 CPH. for the E8 series model,we can provide customized service ,according to your size of your PCB size make the proper machine for your products. in order to service our customers better.
HT-E8D of Technical Parameter
| Dimension | 3150*2250*1650mm |
| PCB Size | Max: 1200*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| No.of camera | 4 sets Vision for the flight identification, Mark correction |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
SMT Line
About our company
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.In China, 85% large and listed LED factory are our client.
4.Top 1 in highspeed pick and place machine in China.
5. Provide Global services
6. Provide whole SMT solution
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Exhibition
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
FAQ
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Egyptian office and Egyptian engineer , etc.
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
Defects of SMT Solder Balls and Analysis of Failure Effects and Causes
Solder balls are a common problem encountered in reflow soldering. Solder balls often appear on the sides of chip components or between fine pitch pins.
Solder beading is usually large enough to be seen with the naked eye, and due to its size, is more likely to dislodge from the flux residue, causing a short somewhere on the assembly.
Solder balls are mostly caused by the scattering of solder caused by rapid heating during the soldering process. In addition to the above-mentioned printing dislocation and sag, it is also related to the viscosity of the solder paste, the degree of oxidation of the solder paste, the thickness (particle size) of the solder particles, and the activity of the flux.
